¢°Model
|
:
|

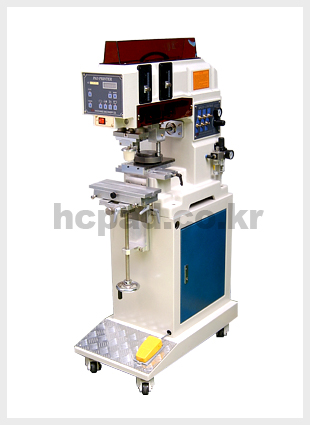

HC-PA110
|

|
¢°Type
|
:
|
Cup Type
|

|
¢°Printing color
|
:
|
1 Color
|

|
¢°Printing speed
|
:
|
40cycles/min (max)
|

|
¢°Printing plate size
|
:
|
100 × 200 mm
|

|
¢°Ink cup size
|
:
|
Ø85
|

|
¢°Power rating
|
:
|
AC220V, 50/60Hz, 50W
|

|
¢°Air consumption
|
:
|
8.4 §¤/cycle
|

|
¢°Features
|
- - - - - - - - - -
|
High-density aluminum casting frame
Little solvent smell as ink is enclosed in the ink cup
No need to frequently dilute ink
Ink is saved and prevented from contamination as it does not spatter
Little shock and noise even at high-speed operation
Easy embossing printing with the built-in printing stop timer
|
|
|
|
|

|

|
¢°Model
|
:
|

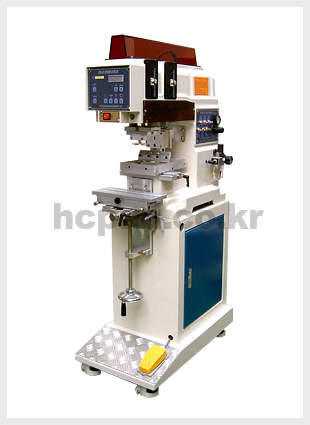

HC-PA120
|

|
¢°Type
|
:
|
Open Type
|

|
¢°Printing
color
|
:
|
1 Color
|

|
¢°Printing
speed
|
:
|
40cycles/min (max)
|

|
¢°Printing plate size
|
:
|
150 × 100mm
|

|
¢°Power
rating
|
:
|
AC220V, 50/60Hz, 50W
|

|
¢°Air
consumption
|
:
|
8.4 §¤/cycle
|

|
¢°Features
|
- - - -
|
High-density aluminum casting frame
Little shock and noise even at high-speed operation
Easy embossing printing with the built-in printing stop timer
|
|
|
|
|

|

|
¢°Model
|
:
|

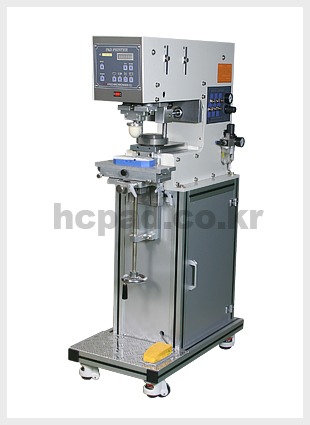

HC-PA130
|

|
¢°Type
|
:
|
Cup Type
|

|
¢°Printing
color
|
:
|
1 Color
|

|
¢°Printing
speed
|
:
|
40cycles/min (max)
|

|
¢°Printing plate size
|
:
|
100 × 200 mm
|

|
¢°Ink
cup
size
|
:
|
Ø85
|

|
¢°Power
rating
|
:
|
AC220V, 50/60Hz, 50W
|

|
¢°Air
consumption
|
:
|
8.4 §¤/cycle
|

|
¢°Features
|
- - - - -
|
Popular mode with the same performance as HC-PA110.
Little shock and noise even at high-speed operation
Easy embossing printing with the built-in printing stop timer
|
|
|
|
|

|

|
¢°Model
|
:
|

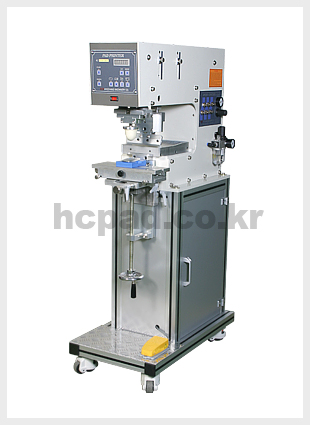

HC-PA140
|

|
¢°Type
|
:
|
Open Type
|

|
¢°Printing
color
|
:
|
1 Color
|

|
¢°Printing
speed
|
:
|
40cycles/min (max)
|

|
¢°Printing plate size
|
:
|
150 × 100mm
|

|
¢°Power
rating
|
:
|
AC220V, 50/60Hz, 50W
|

|
¢°Air
consumption
|
:
|
8.4 §¤/cycle
|

|
¢°Features
|
- - - - -
|
Popular mode with the same performance as HC-PA120.
Little shock and noise even at high-speed operation
Easy embossing printing with the built-in printing stop timer
|
|
|
|
|

|

|
¢°Model
|
:
|

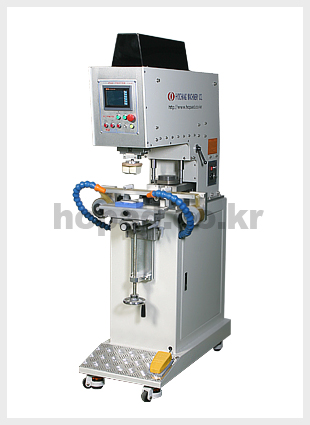

HC-PM110
|

|
¢°Type
|
:
|
Cup Type
|

|
¢°Printing
color
|
:
|
1 Color
|

|
¢°Printing
speed
|
:
|
40cycles/min (max)
|

|
¢°Printing plate size
|
:
|
100 × 200 mm
|

|
¢°Ink
cup
size
|
:
|
Ø85
|

|
¢°Power
rating
|
:
|
AC220V, 50/60Hz, 500W
|

|
¢°Features
|
- - - - - - - - - - - -
|
Very high printing precision by the 3-axis driving with the servo motor and precision ball screw.
No need for compressed air and little noise
No shock at high-speed operation
Little risk of safety accident in printing by independent forward/backward driving of the pad and printing plate
Significant lower possibility of mechanical trouble compared to general pneumatic machinery
|
|
|
|
|

|

|
¢°Model
|
:
|

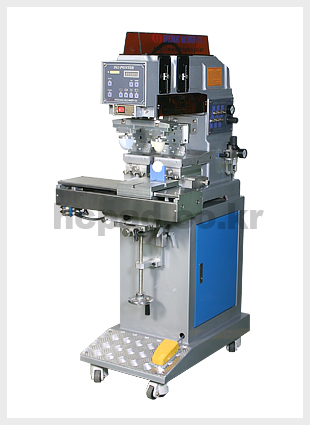

HC-PA210
|

|
¢°Type
|
:
|
Open Type
|

|
¢°Printing
color
|
:
|
2 Color
|

|
¢°Printing
speed
|
:
|
40cycles/min (max)
|

|
¢°Printing plate size
|
:
|
100 × 150 mm
|

|
¢°Power
rating
|
:
|
AC220V, 50/60Hz, 50W
|

|
¢°Air
consumption
|
:
|
11 §¤/cycle
|

|
¢°Features
|
- - - - - - - - -
|
High-density aluminum casting frame
Little shock and noise even at high-speed operation
Easy embossing printing with the built-in printing stop timer
|
|
|
|
|

|

|
¢°Model
|
:
|

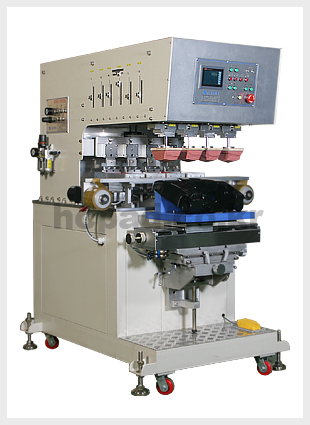

HC-PA601
|

|
¢°Type
|
:
|
Open Type
|

|
¢°Printing
color
|
:
|
4 Color
|

|
¢°Printing
speed
|
:
|
20cycles/min (max)
|

|
¢°Printing plate size
|
:
|
100 × 150 mm
|

|
¢°Power
rating
|
:
|
AC220V, 50/60Hz, 350W
|

|
¢°Air
consumption
|
:
|
67.4 §¤/cycle
|

|
¢°Features
|
- - - - - - -
|
Basically equipped with the pad cleaning unit
Suitted to simultaneous 2-color printing at 2 positions
Little shock and noise even at high-speed operation
Easy embossing printing with the built-in printing stop timer
|
|
|
|
|

|

|
¢°Model
|
:
|

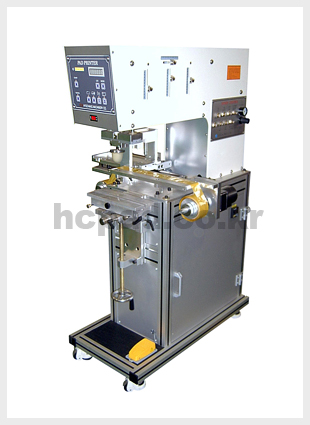

HC-PA602
|

|
¢°Type
|
:
|
Cup
Type
|

|
¢°Printing
color
|
:
|
1 Color
|

|
¢°Printing
speed
|
:
|
25cycles/min (max)
|

|
¢°Printing plate size
|
:
|
400
x
100m
|

|
¢°Power
rating
|
:
|
AC220V,
60Hz,
70W
|

|
¢°Air
consumption
|
:
|
18
§¤/cycle
|

|
¢°Features
|
- - -
|
The print panel long in width is optimal for printing in long shape.
The pad cleaning unit is basically equipped.
|
|
|
|
